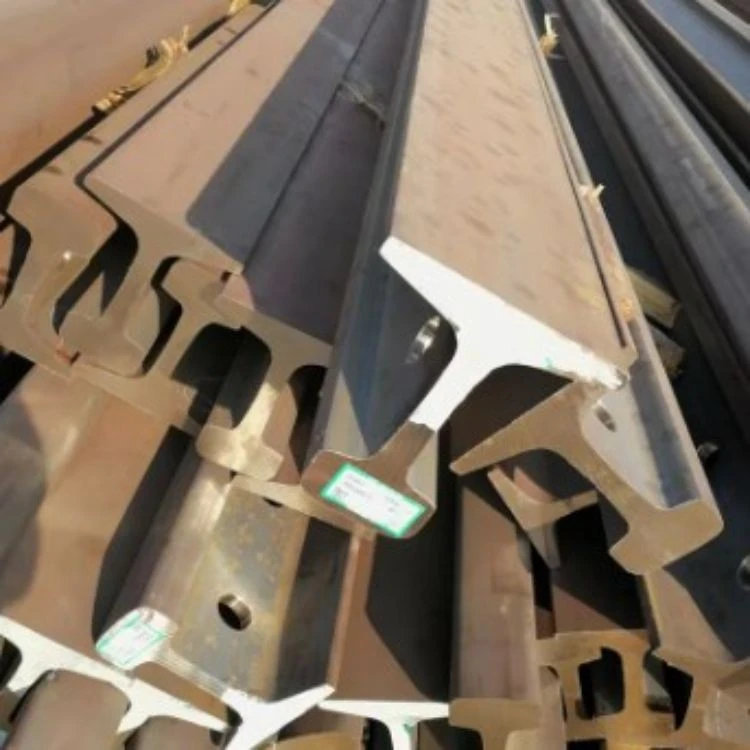

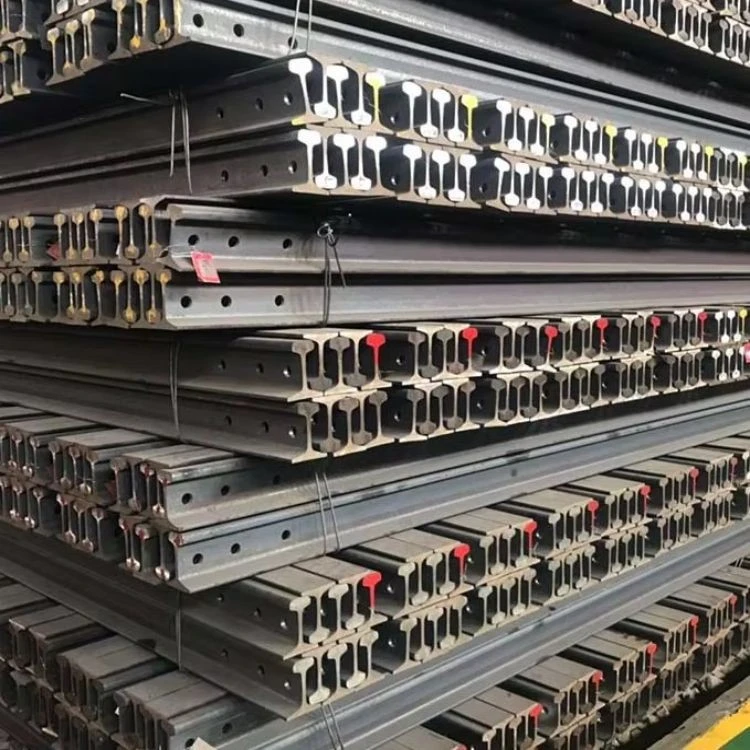

QU120 GB Heavy Duty Crane Rail

Tsim los rau Suav tus qauv YB/T5055-2014 (GB standard), QU120 GB hnyav crane rail yog qhov loj tshaj plaws profile nyob rau hauv QU series, Featuring lub taub hau dav, tuab web, thiab lub hauv paus tiaj tus, tshwj xeeb tshaj yog engineered rau ultra- hnyav lifting khoom, loj heev cross-section tsim los ntawm 40 ton huab loads.

Dimensions ntawm QU120 Crane Rail:

• Ntev: 12m lossis lwm qhov ntev raws li cov neeg siv khoom xav tau



• Khoom siv: U71Mn



• Qauv: YB/T5055-2014



• Rail Qhov siab: 170mm



• Hauv qab dav: 170mm



• Web Thickness: 44mm



• Lub taub hau dav: 120mm



• Qhov hnyav: 118.1kg / m

Nrog rau cov khoom siv ruaj khov thiab du railhead nto,GNEE RAIL's crane ntsia kom ruaj khov ua haujlwm, tsis muaj suab nrov, thiab ncua kev pab cuam lub neej. Peb muab tag nrho cov kev txhawb nqa kev daws teeb meem thiab txhim khu kev qha zoo, ua rau lawv qhov kev xaiv zoo tshaj plaws rau cov chaw nres nkoj, cov chaw tsim khoom, thiab cov chaw xa khoom xa tuaj.

Txhawm rau kom ntseeg tau qhov siab tshaj plaws load-cov kabmob muaj peev xwm thiab hnav tsis kam, GNEE's QU120 crane rails tsuas yog dov los ntawm hwm U71Mn steel. Lub siab manganese thiab carbon cov ntsiab lus tseem ceeb nce lub hardness thiab tensile lub zog ntawm txoj kev tsheb ciav hlau nto, ua tau zoo ncua kev pab cuam lub neej ntawm ob lub tsheb ciav hlau thiab lub crane log.

GB QU120 crane rail yog lub siab -lub zog, hnyav- lub luag haujlwm rail (120mm taub hau dav) tsim los ntawm U71Mn steel, tsim los rau kev thauj khoom zoo tshaj -cov kabmob muaj peev xwm (100–{7}} tonnes). Nws cov txiaj ntsig tseem ceeb suav nrog kev ua haujlwm tshwj xeeb nrog 30% kev pabcuam lub neej ntev, kev hnav tsis kam, thiab kev ruaj ntseg rau cov gantry loj / nyiaj siv ua haujlwm cranes hauv cov chaw nres nkoj thiab steel mills.

Cov txiaj ntsig tseem ceeb ntawm QU120 crane rail muaj xws li:

• Siab Load-Bearing Capacity:Engineered rau huab, hnyav-lub luag haujlwm nqa, txhawb nqa ib leeg- log loads ntau dua lossis sib npaug li 150 tons thiab ua haujlwm nyab xeeb hauv qab 100-400 tonne loads, ua rau nws zoo tagnrho rau loj gantry cranes thiab ntim ntim.



• Superior Durability thiab Service Life:Tsim los ntawm U71Mn steel, lub tsheb ciav hlau muaj lub zog tensile Ntau dua los yog sib npaug rau 900MPa thiab hardness ntawm HB 380-420, ua rau 30% ntev kev pab cuam lub neej piv rau cov qauv ntsia.



• Zoo heev hnav thiab cuam tshuam tsis kam:Lub 120mm dav rail lub taub hau thiab lub duav tuab muab ob npaug ntawm kev hnav tsis kam ntawm cov ntsia hlau zoo tib yam, nrog rau kev qaug zog tsis tu ncua, siab - zaus dov thiab cuam tshuam.



• Stability thiab Precision:GB tus qauv profile ua kom muaj qhov tsawg kawg nkaus deformation thiab kev co, muab kev sib tw, ruaj khov rau kev ua haujlwm hnyav, hnyav.



• Ntau yam Customization:Muaj nrog tshwj xeeb, kev kho deg xws li galvanizing (Ntau dua lossis sib npaug ntawm 80μm) rau kev tiv thaiv corrosion zoo tshaj hauv qhov hnyav, ntug dej hiav txwv ib puag ncig.

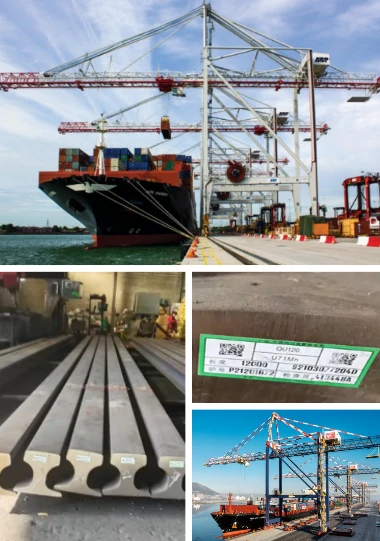

QU120 Crane Rail tau siv dav hauv cov haujlwm hnyav -cov haujlwm, suav nrog steel mills, shipyards, thiab, thawv terminals.

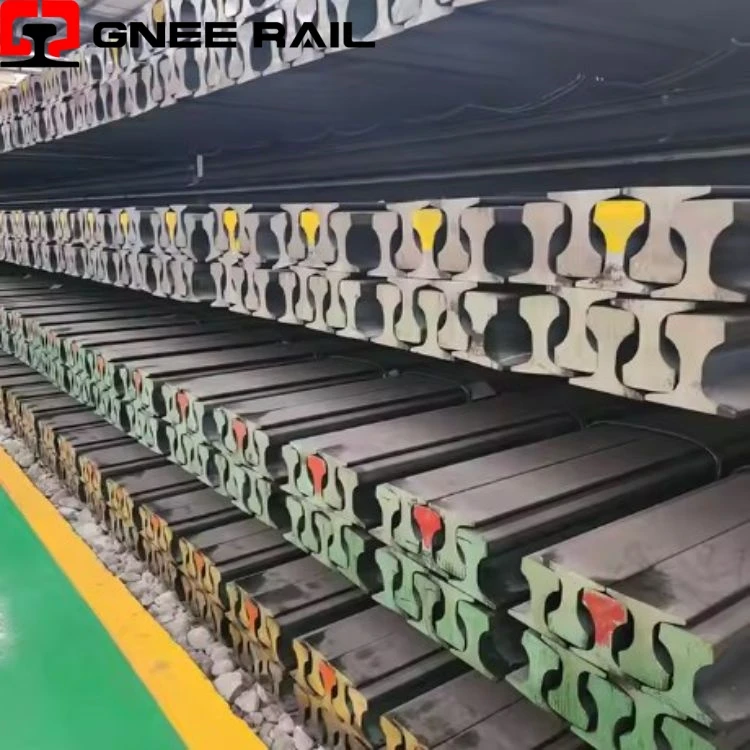

GNEE RAILspecializes nyob rau hauv siab -kev ua tau zoo cranes tsim rau hnyav-lub luag hauj lwm gantry, overhead, thiab quay cranes. Peb cov khoom, suav nrog QU80, QU100, QU120 series, yog tsim los ntawm siab -lub zog steel nrog nruj qhov tseeb qhov tseeb thiab superior hardness. Lawv muab tshwj xeeb hnav tsis kam, qaug zog ua haujlwm, thiab ruaj khov kom tiv taus rov qab hnyav hnyav thiab cuam tshuam lub zog.

GNEE RAIL Service Customized xaiv muaj xws li:

• Bevel txiav:Bevel txiav, xws li 45℃lub kaum sab xis, tuaj yeem ua rau ntawm crane ntsia kom tau raws li kev teeb tsa tshwj xeeb lossis kev sib txuas layouts.

• End Machining:Rail xaus yog chamfered kom tshem tawm cov npoo ntse uas tuaj yeem ua rau lub log lossis fittings puas. End milling ua kom du, tiaj tiaj qhov sib koom ua ke thiab txo qhov sib txawv ntawm txoj hlua txuas.



• Rail Bending:Cov ntsia hlau tuaj yeem khoov txias lossis kub kom haum rau cov kab txaij nkhaus lossis tig ntu, nrog kev tswj nruj ntawm kev ntxhov siab sab hauv thiab sab saum toj flatness.



• Trolley Rail Systems:QU series crane rails muaj rau cov chaw nres nkoj crane trolley systems. GNEE RAIL muab kev cai- txiav luv luv thiab cov khoom siv sib xws, suav nrog kho cov blocks thiab qhov kawg nres.

• Custom processing:Tshwj xeeb kawg shaping, nrog rau welded sib koom configurations, yog muaj kom haum rau tej yam yuav tsum tau ua.

Ua tiav Accessories rau QU-series Rail System:

• Ntses daim hlau: Kub-dip galvanized Q235B steel ntses daim hlau txuas QU-series rails nrog ± 0.3mm precision, kom ntseeg tau tias nruj bolted pob qij txha thiab du load hloov.



• Rail Clamps:WJK-welded rail clips, forged los ntawm 45 # steel nrog dual anti-corrosive txheej, haum QU rail bases. Muaj nyob rau hauv welded los yog bolted versions, lawv muaj xws li elastic pads rau dampen vibrations.



• Siab -Lub zog Bolts:8.8/10.9- qib bolt teeb, Dacromet-coated, ua tau raws li ISO/GB cov qauv thiab muab 500+ teev ntsev tsuag tshuaj tiv thaiv-triple lub durability ntawm standard bolts.

• Rubber Pads:Ntuj los yog nitrile roj hmab ncoo (60–70 HA) nyob rau hauv 5/8/10mm thicknesses muab tso rau hauv QU-series rails nqus tej yam thiab txo suab nrov.
